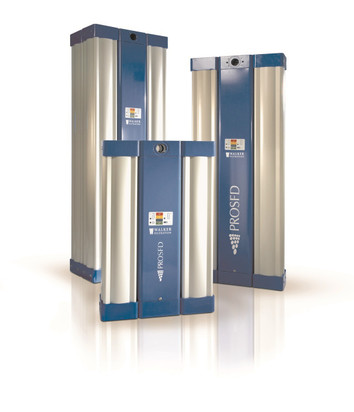

55 CFM Regenerative Desiccant Dryer, Walker Filtration, PD055N

Availability:
Call to confirm
Flow Rating (CFM):
55
Connection:
3/4 NPT
Power Supply:
115V
Max. Pressure (PSI):
232
Electrical Area Classification:
Non-Hazardous

Pro SFD series compressed air dryers from Walker Filtration deliver high quality compressed air for critical applications requiring an ultra-low pressure dew point.  SFD dryers use the principle of pressure swing adsorption (also called heatless drying) to strip trace amounts of water vapor from compressed air lines, yielding dew points as low as -40F.

SFD dryers have been designed for ease of installation and simple operation and can be mounted in either a horizontal or vertical position.  The simple diagnostic panel displays key operating information and service alerts.  A simple to remove aluminum shroud allows quick access to all valves and desiccant cylinders.

Features & Benefits

  • .01 Coalescing Pre-Filer Included (External Mount)
  • 1 Micron Outlet Filter Included (Internal)
  • Panel Controlled Automatic Condensate Drain
  • Clear Desiccant Cartridges Allow Quick Visual Inspection
  • Purge Management Control

Specifications

  • Model PD055N
  • Connections, 3/4"
  • Nominal Flow Rating, 55 SCFM @ 100 PSIG, 100F Air Inlet
  • 130 Lbs
  • 32 x 21 x 7" (h x w x d)
  • Standard Pressure Dew Point, -40F
  • Optional Pressure Dew Point, -100F
  • Max Pressure, 232 PSIG
  • Min Pressure, 58 PSIG
  • Power Supply, 12 to 24V DC or 100 to 240V AC
  • Air Inlet Temperature Range, 35F to 122F
  • Minimum Ambient Temperature, 41F

Contact us for corrected flow rating at operating outside nominal conditions.

Brochure

Operation Manual

Guaranteed to be free of defects in materials and workmanship for 12 months from date of shipment. Limitations apply.
