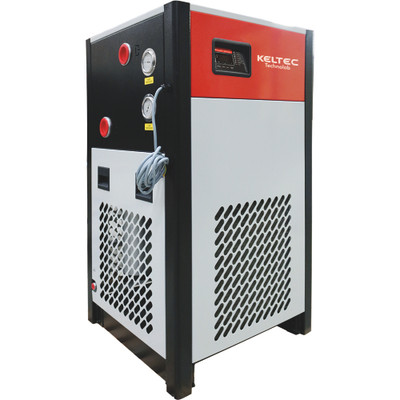

350 CFM Non-Cycling Refrigerated Air Dryer, Dual Integral Filters, 2" Connections, 230 PSI Max, Keltec KRAD-350

$8,717.20
Shipping:
Calculated at Checkout
Flow Rating (CFM):
350
Connection:
2 NPT
Power Supply:
230V
Max. Pressure (PSI):
230
Max Inlet Temp. (F):
140
Type:
Non-Cycling

Introducing KRAD Series Refrigerated Air Dryers by Keltec

No other refrigerated dryer on the market today pairs such a rich array of features a comparable price point.  These industrial grade air dryers are an excellent choice for professional air systems where reliability and serviceability are the highest priorities.

Key Selling Points

  • Integrated 1 micron pre-filter protects the dryer's heat exchanger and down-stream equipment from oil contamination
  • Integrated .01 micron after-filter removes dust and dirt to protect down-stream components
  • Digital controller monitors dryer performance and displays service alerts
  • Tool free "easy lift" panel access
  • Electrical components isolated from refrigeration system improves serviceability and shields electronics from heat

Features & Specifications

  • Model KRAD-350
  • Rated Air Flow: 350 SCFM @ 100 PSIG, 100° F Inlet, 100° F ambient
  • Integrated 1 micron pre-filter and .01 micron after-filter with within cabinet
  • Automatic drains
  • Power: 220V-1Ph-60Hz
  • Air connections: 2" NPT
  • Maximum pressure: 230 PSIG
  • Maximum inlet temperature: 140° F
  • Outlet dew point: 38° F at rated conditions
  • Digital controller
  • 3-in-1 heat exchanger
  • Refrigerant suction and discharge pressure gauges
  • Manufacturer's warranty: 24 months
