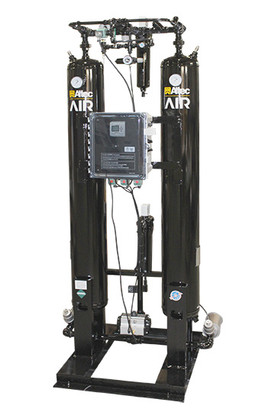

Altec Air desiccant air dryer model HRL-100-1 delivers high purity compressed air for critical applications. Applications include: instrumentation, pharmaceuticals, electronics, air line protection from blow freezing ambient temperatures.
Specifications
- Nominal rating: 100 SCFM @ 100 PSIG, 100F air inlet
- Outlet pressure dew point at rated conditions: -40 F
- 1" NPT air inlet and outlet
- NEMA 4 control enclosure
- ASME Code vessels with CRN approval for Canadian buyers
- Activated alumina desiccant
- Factory mounted pre- and after filters
- 150 PSIG maximum pressure
- Safety relief valves
- Control air filter
