F200 series industrial grade compressed air filters are simple and effective tools for eliminating oil, liquid water, and solid particulate contamination from compressed air lines. Each F200 filter is cast in high performance A356 aluminum and is backed by an industry-leading 5 year warranty. F200 filters are cast, machined, and assembled by Van Air Systems in Pennsylvania.
The loss of pressure is a hidden cost of operating an air system, amounting to wasted energy. F200 series filters use engineered borosilicate fiberglass filter elements with smooth flow technology to keep pressure to minimize pressure loss.

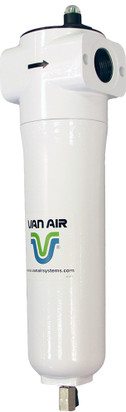

Coalescing filter model F200-350-1 1/2-*-PD6 has the following features and specifications:
- Flow Rating (CFM @ 100 PSI): 350
- Max Pressure (PSI): 250
- Connection Size (NTP): 1.5"
- Pressure Differential at Start-Up
- Grade A Element, 5 micron: 0.50 PSID
- Grade B Element, 1 micron: 0.75 PSID
- Grade C Element, .01 micron: 1.5 PSID
- Pop-up Color Changing Differential Pressure Indicator (Green to Red)
- Nickle Plated Brass Manual Drain or Internal Float Auto Drain
- Height x Diameter (inches) 20.5 x 5
- Weight (lbs.): 7
- Housing Material: A356 Aluminum
- Interior Electrophoretic Coating
- Exterior Chip Resistant Powder Coating
- Filter Element: Borosilicate Fiberglass
- Warranty: 5 years
- Country of Origin: USA
*Indicates selection of element grade and drain type, as per the application requirements.
