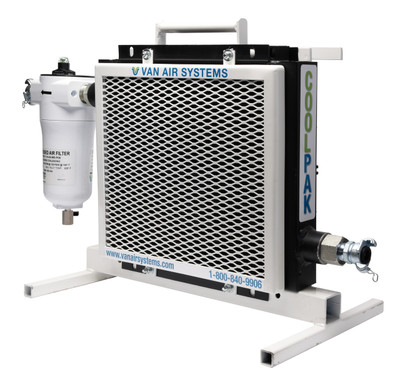

The Cool Pak from Van Air Systems is a compact and portable after-cooler with bulk water separator designed for use with 185 CFM portable air compressors. The Cool Pak eliminates up to 70% of the water vapor in the compressed air line by efficiently cooling, condensing, and separating water contamination. Reducing the water content of compressed air extends the life of air tools and minimizes the negative effects of wet abrasives.
The Cool Pak includes a cooler (radiator) with a 12V DC fan motor and a bulk liquid separator. These components are packaged in a steel framed carrying case.
Specifications
- Flow Rating: 185 SCFM at 100 PSIG
- Package Maximum Pressure: 150 PSIG
- Cooler and Filter-Separator Rated for 250 PSIG
- Hose Couplings Rated for 150 PSIG; Operator Can Change Couplings for Higher Pressure Requirements
- 12V DC Fan Motor
- 50 Foot Power Cord
- Air Inlet and Outlet: 2-Lug Hose Couplings or 4-Lug Hose Couplings
- Dimensions: 24 w x 14 d x 23 h
- Weight: 68 lb
- Click Here for Operation Manual
For critical applications where no free water can be present in the air line, consider the DryPak Pro air dryer for 185 CFM air compressors.
