Introducing KRAD Series Refrigerated Air Dryers by Keltec
No other refrigerated dryer on the market today pairs such a rich array of features a comparable price point. These industrial grade air dryers are an excellent choice for professional air systems where reliability and serviceability are the highest priorities.
Key Selling Points
- Integrated 1 micron pre-filter protects the dryer's heat exchanger and down-stream equipment from oil contamination
- Integrated .01 micron after-filter removes dust and dirt to protect down-stream components
- Digital controller monitors dryer performance and displays service alerts
- Tool free "easy lift" panel access
- Electrical components isolated from refrigeration system improves serviceability and shields electronics from heat
Features & Specifications

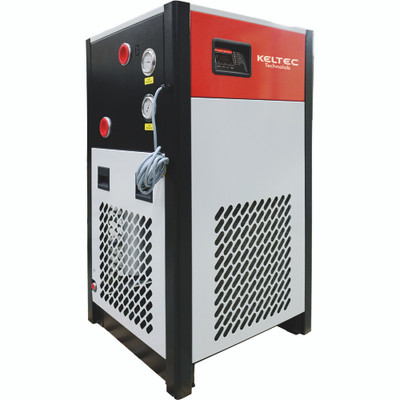

- Model KRAD-600
- Rated Air Flow: 600 SCFM @ 100 PSIG, 100° F Inlet, 100° F ambient
- Integrated 1 micron pre-filter and .01 micron after-filter with within cabinet
- Automatic drains
- Power: 460V-3Ph-60Hz
- Air connections: 3" NPT
- Maximum pressure: 230 PSIG
- Maximum inlet temperature: 140° F
- Outlet dew point: 38° F at rated conditions
- Digital controller
- 3-in-1 heat exchanger
- Refrigerant suction and discharge pressure gauges
- Dimensions: 32 W x 38 D x 58 H Inches
- Weight: 600 Lb
- Manufacturer's warranty: 24 months
